22mm Momentary Mushroom Head Push Button Switch 1NO1NC 7/8'' Mouting Size (Red Green)

SKU: LA36A-11M-R
Availability: In Stock
$9.89
$9.89
Color: Red
Subtotal: $9.89
Ask An Expert
  • APIELE

Free Shipping

Free Shipping Worldwide

Fast Express Shipping on Orders $99+

Customized and wholesale

Support product customization

Offer tiered discounts for bulk purchases

Contact info@apiele.com

Description
Description
x

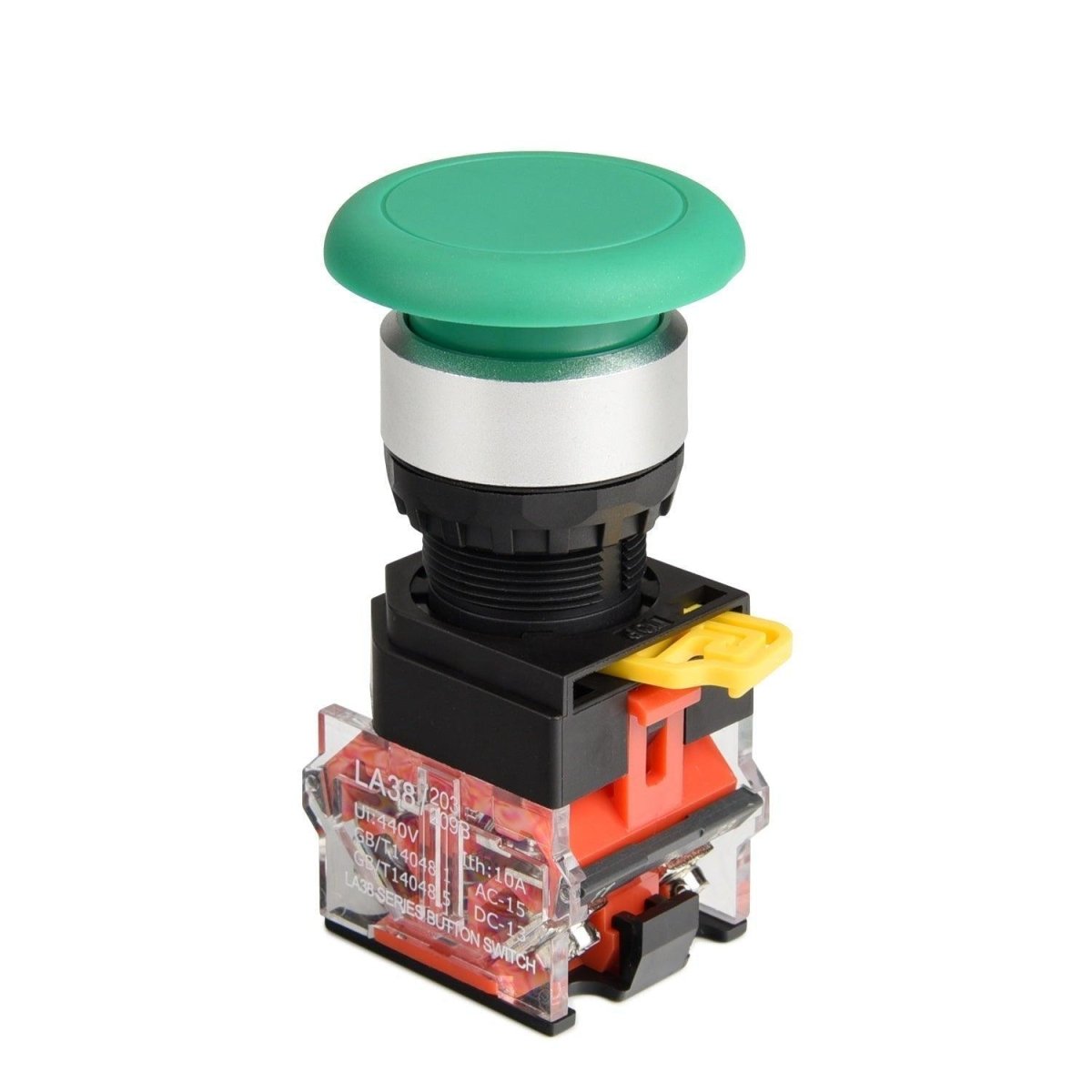

This is a momentary stop switch, made for ease of installation and resilience thanks to the four-terminal screw and high-quality material construction. Also, it comes in red and green options for variety.

Hole Size

This 22mm momentary switch is only mountable on 22 mm-sized ports. In tandem with the 1NO 1NC configuration, the momentary action guarantees ease of operation because all you need to do is press to lock it and twist it to release.

Durability

This switch is made using top-quality metal for a resilient and long-lasting build. The contact includes a silver build, while the rest of the button is made of aluminum. Also, this unit can be used in environments with -20℃ to 55℃ temperature range, which improves versatility.

The 500,000 electrical and 2,000,000 mechanical cycles warrant longevity, while the O-ring delivers splash-resistance, hence perfect for use in multiple spaces. All the same, avoid immersing this emergency switch in water.

Uses

This switch is vastly utilized in controlling an electromagnetic starter, relay, contactor, and other automated electric circuits.

Specification:

  • Terminal: 4 screw terminals. Ith:10A; Ui:440V; 1NO1NC
  • Install Size: 22mm
  • Action: Momentary
  • Rated Voltage: 660V; Rated Current: 10A
  • Contact Material: Silver Contact
  • Mechanical Life: ≥ 2,000,000 times
  • Electrical Life:≥ 500,000 times
  • Operating Temperature: -25℃~55℃
  • Contact Resistance: ≤30 mΩ
  • The highest Dielectric Strength: 3000VAC 50HZ

Warranty

You can send it back and get a new emergency switch in case it’s broken, thanks to the 3-year warranty.

What’s in the box?

The package you receive will include:

  • One green or red mushroom emergency push button switch
