19mm Momentary Push Button Switch 3/4 Power Symbol LED with Socket Plug 1NO 1NC SPDT ON/Off (Blue/Red/Green/Yellow/White)
SKU:
AP19BF11EPS6BT
Availability:
In Stock
- $10.98
-
- $10.98
- Unit price
- per
Subtotal:
$10.98
10 customers are viewing this product
Free Shipping
Worldwide Free Shipping (Ordinary Delivery)
Orders over 500$ Fast Express Free
Description
xFeatures:
- GET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH.
- Brand New Silver Stainless Steel Power Symbol Push button Switch; LED voltage: 12V only, Hole size required: 0.74''/19mm
- Attention: This is a Momentary Push Button Switch! Push & Hold, ON; Release, OFF, Contact Configuration: 1NO1NC
- Electrical life: 200 thousand times. Mechanical life: 1,000,000 cycles
- High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
Details:
Momentary switch
Momentary switches only remain in their on stateas long as they're being pressed.
Specification:
- Switch Rating: 5A
- Operation Temperature: -20℃~ +55℃
- Mechanical life: 1,000,000 cycles
- Electrical life: 200,000 cycles
- Panel thickness: 1 - 10mm
- Protection level: IP65, IK10
- Mounting Cut Hole: 19mm
- Head Diameter: 22mm
- Operation Type: Momentary
- Switch Contact: 1NO 1NC
- LED Pattern: Power Indicator
- Contact Material: Silver alloy
- Button Material: Stainless Steel
Note:
- The switch come with a rubber O-ring whichmakes it splash resistant but it can NOT be submerged underwater.
Packing Include: 1 x push button switch

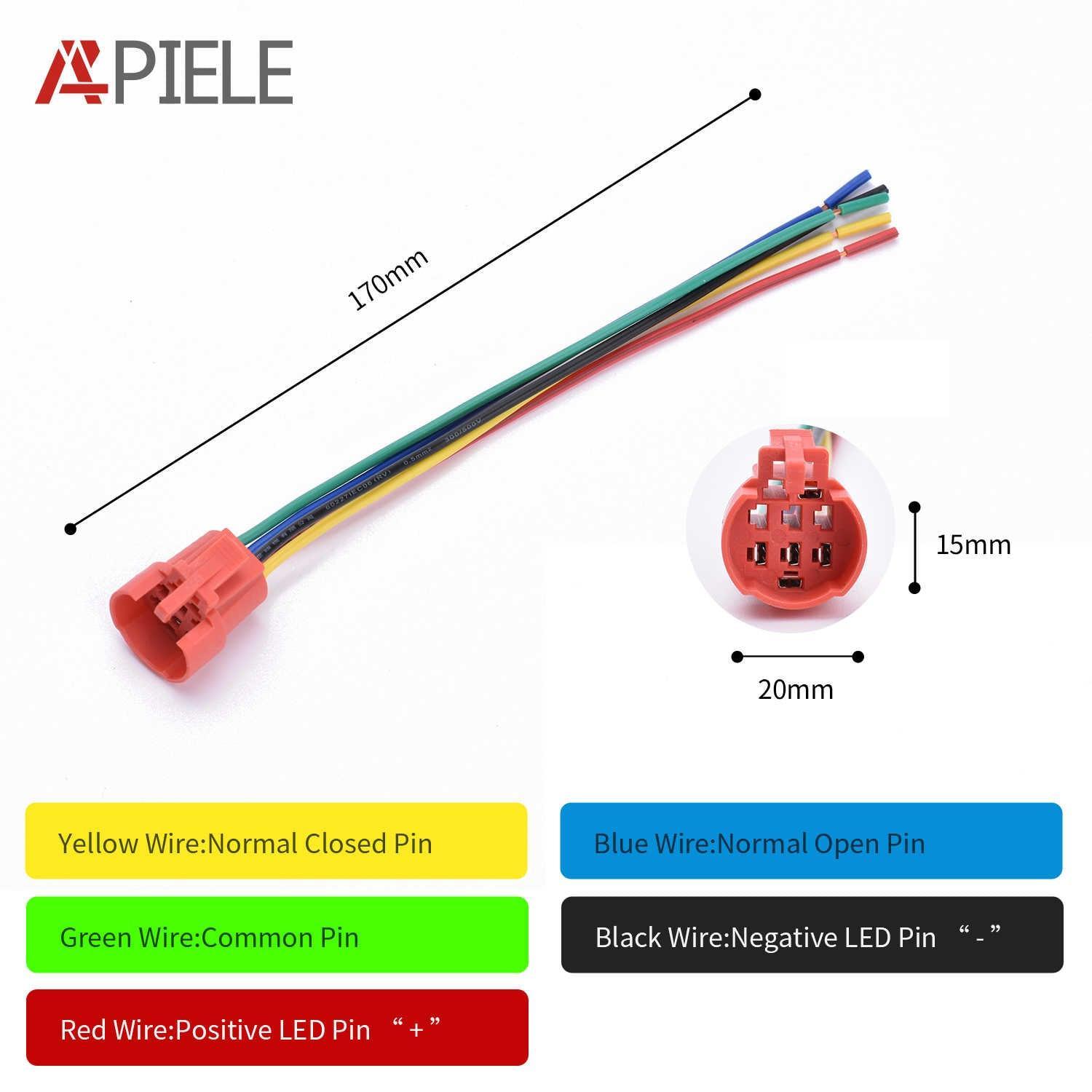

1 x pigtail socket
1 x Wiring diagram
