- GET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH.

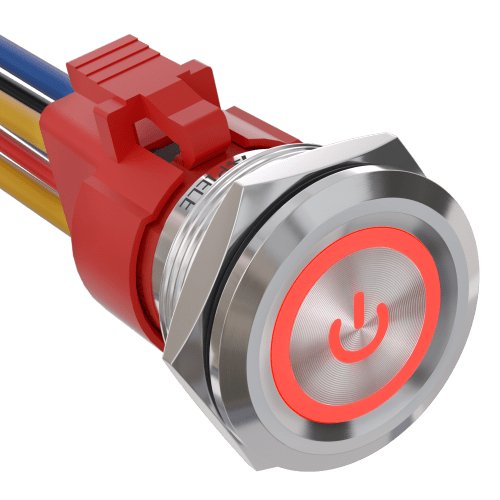

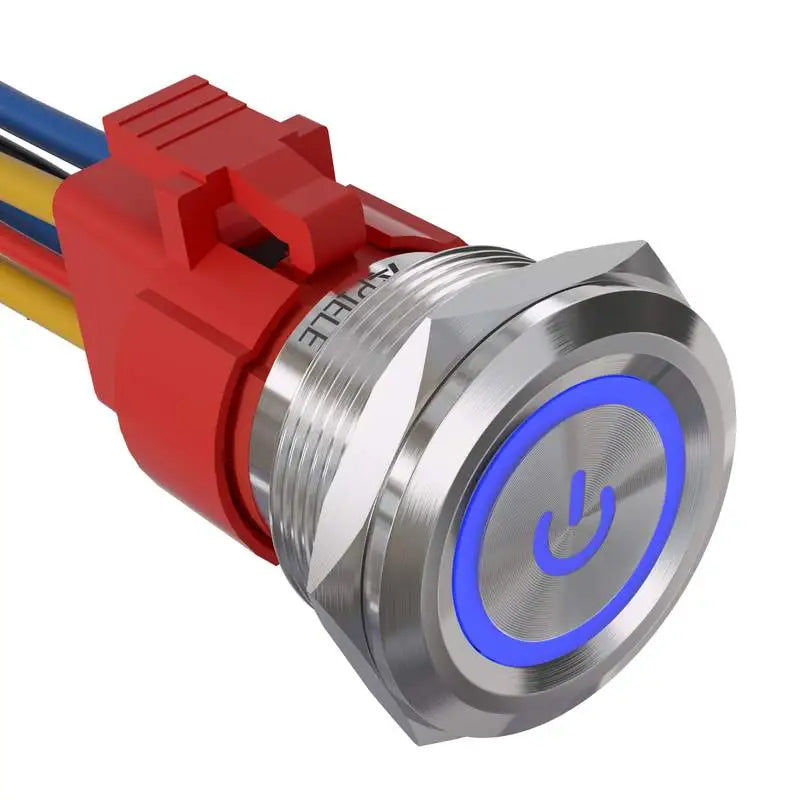

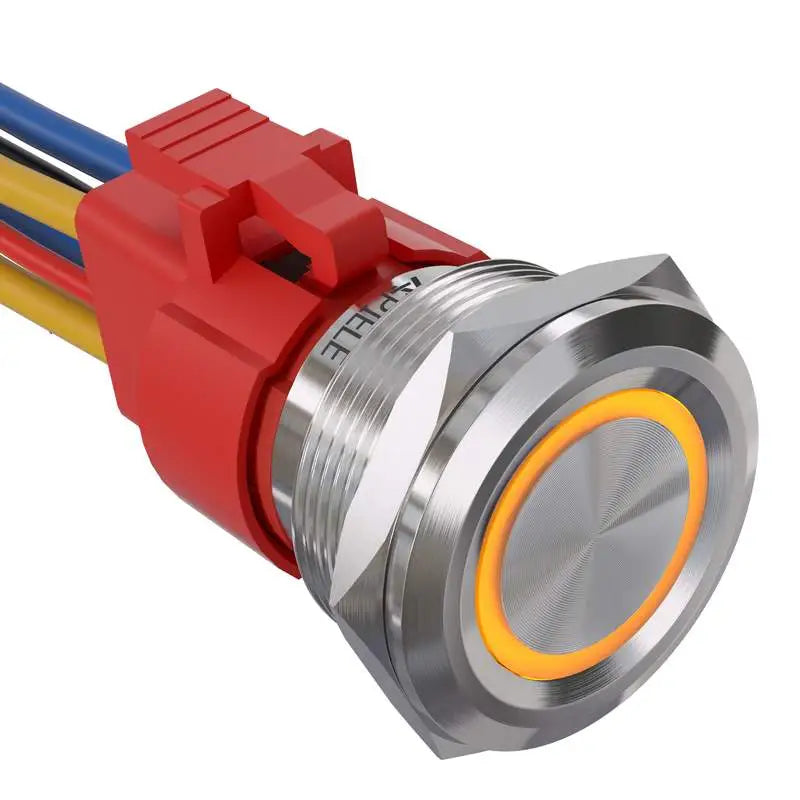

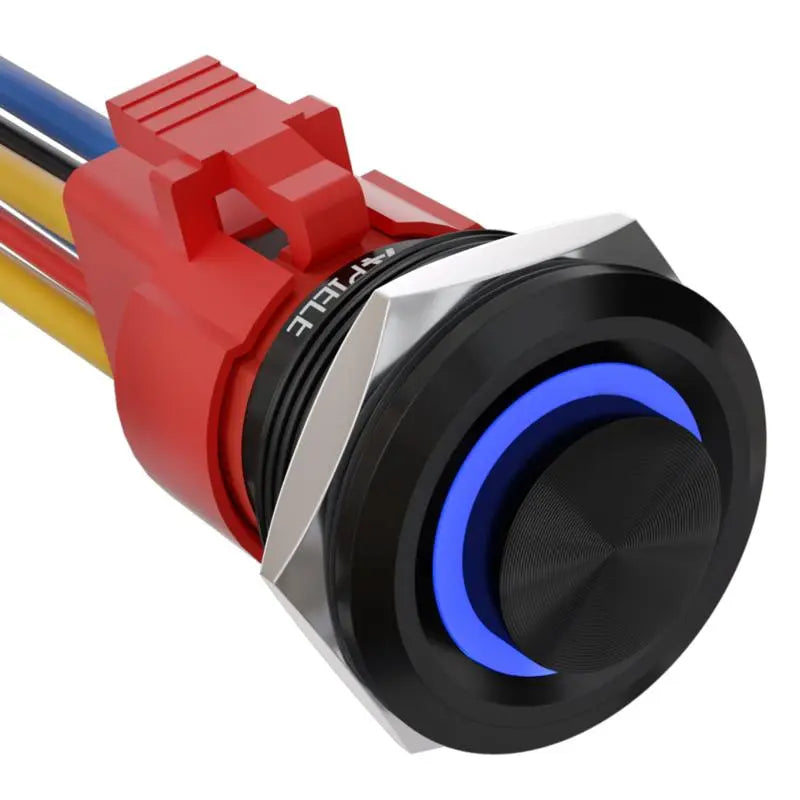

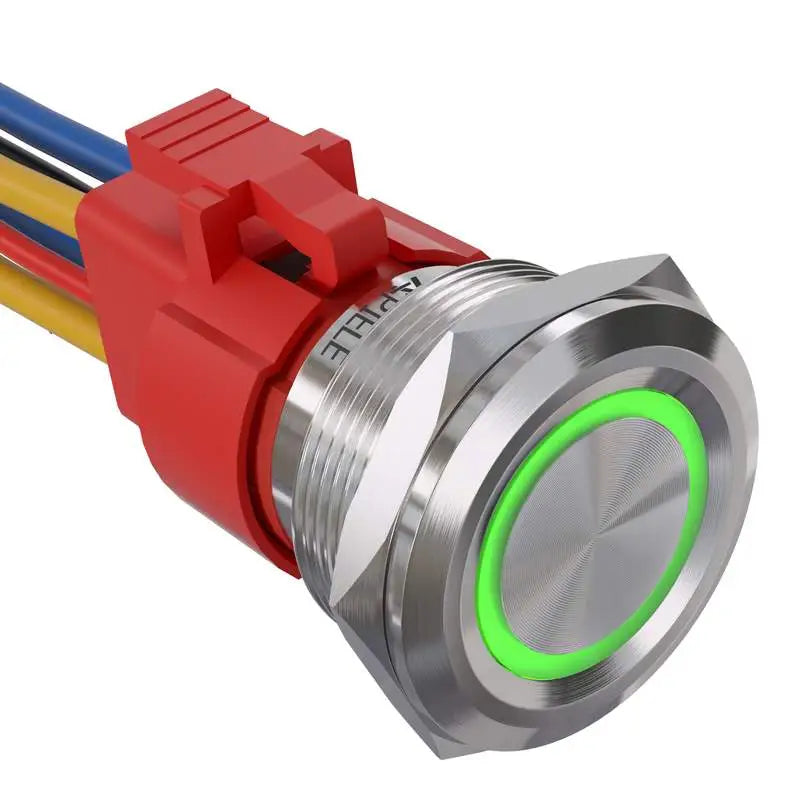

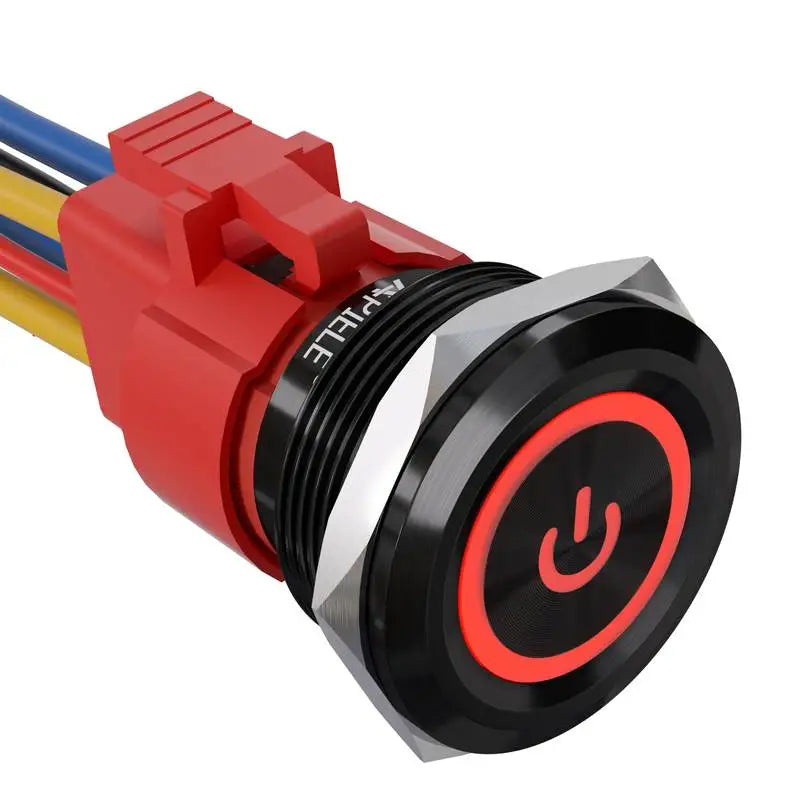

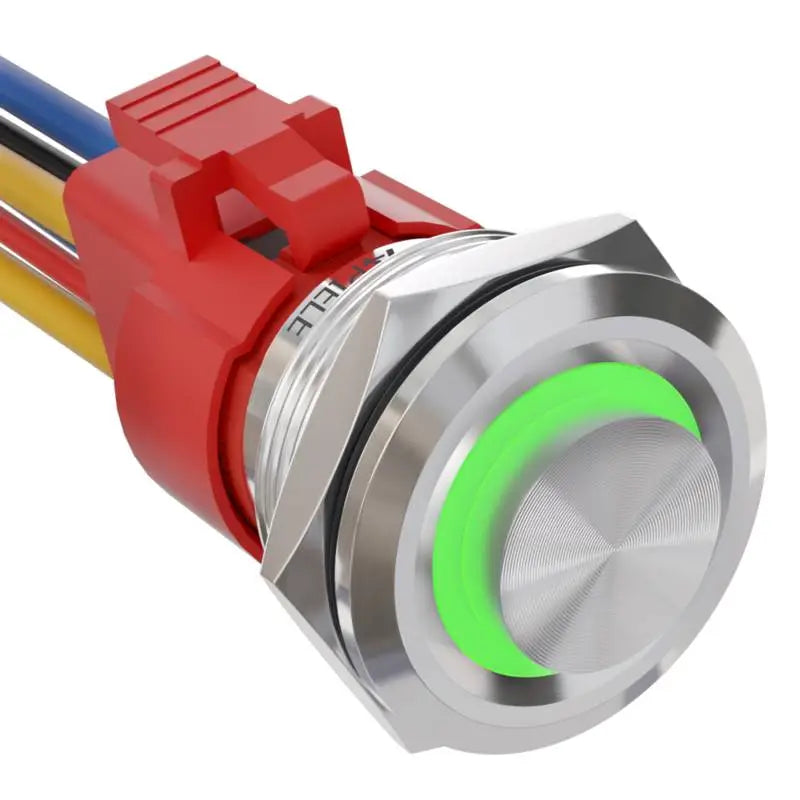

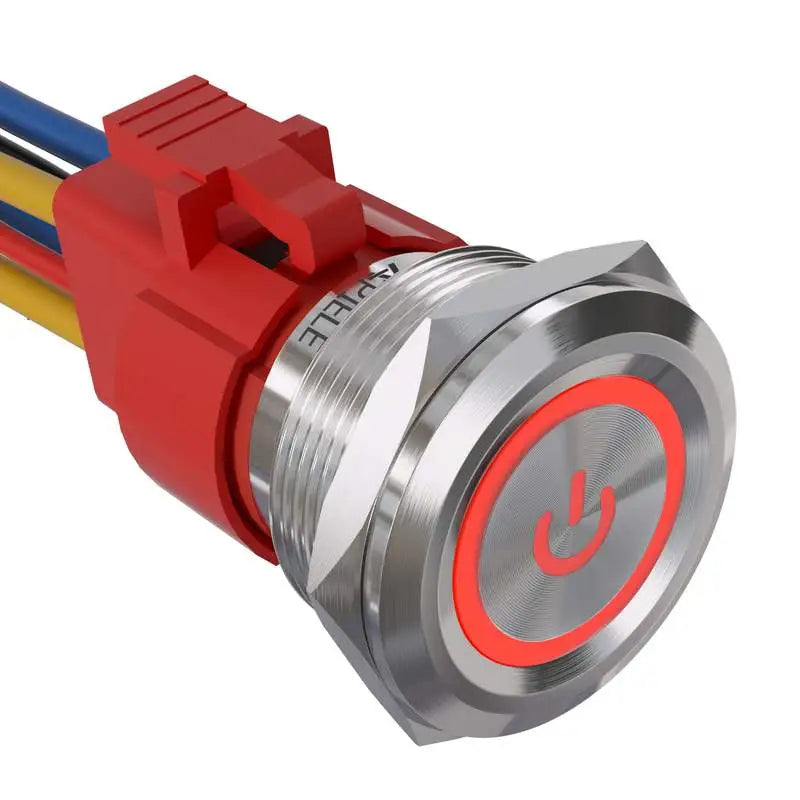

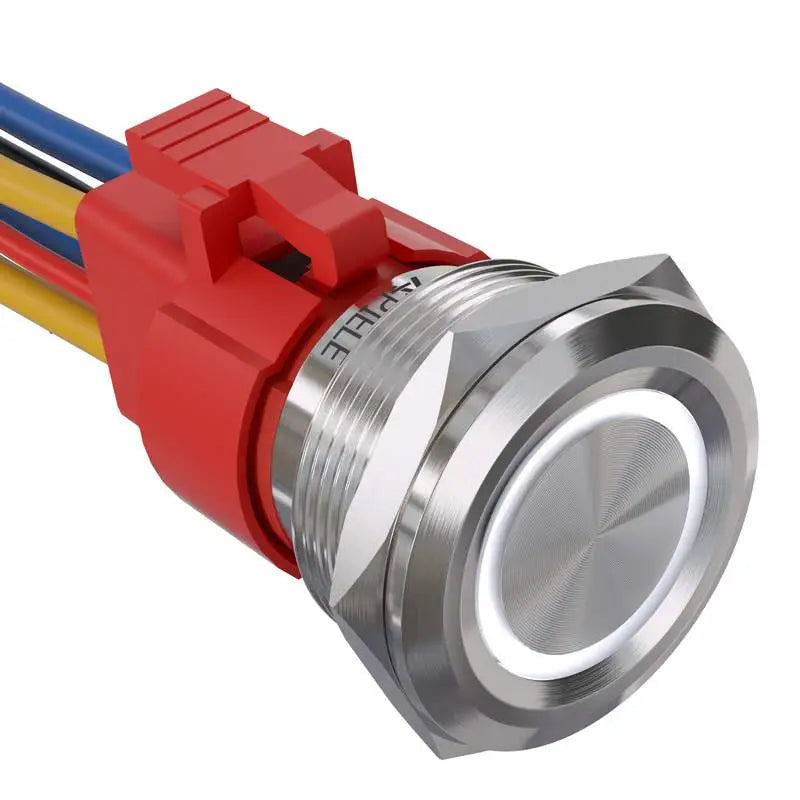

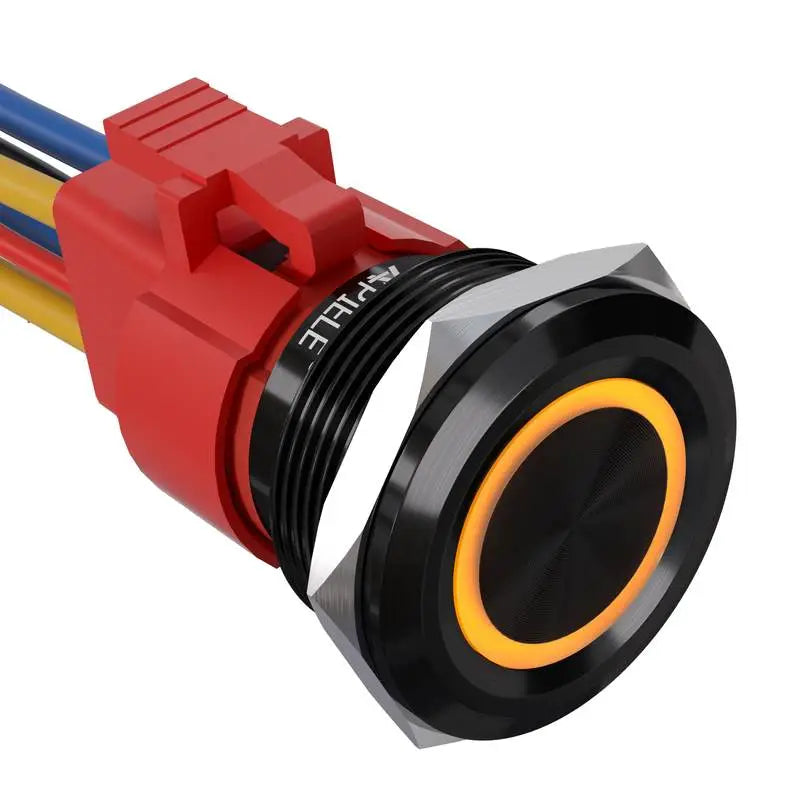

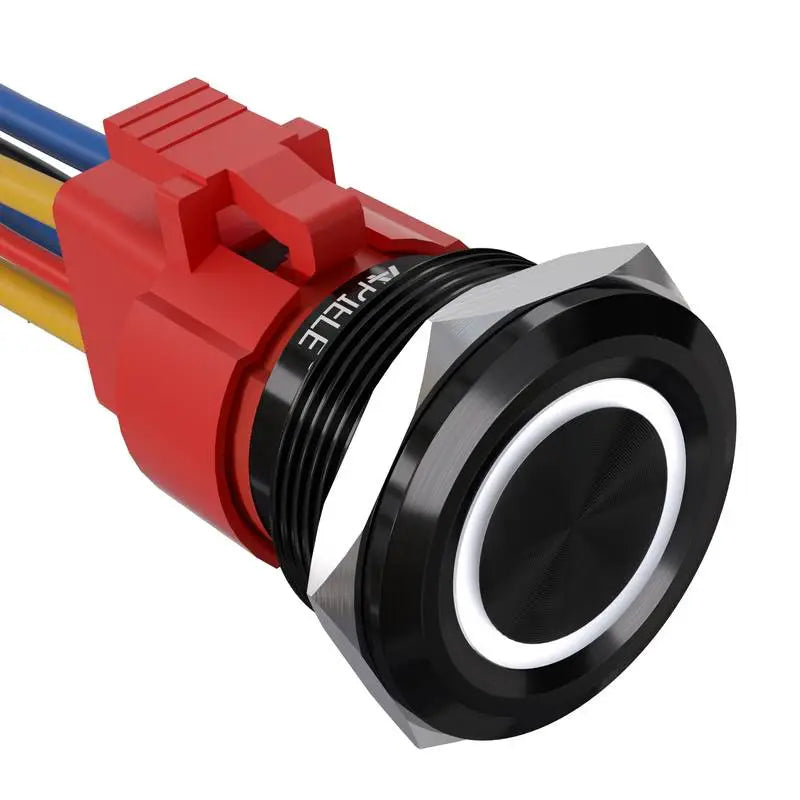

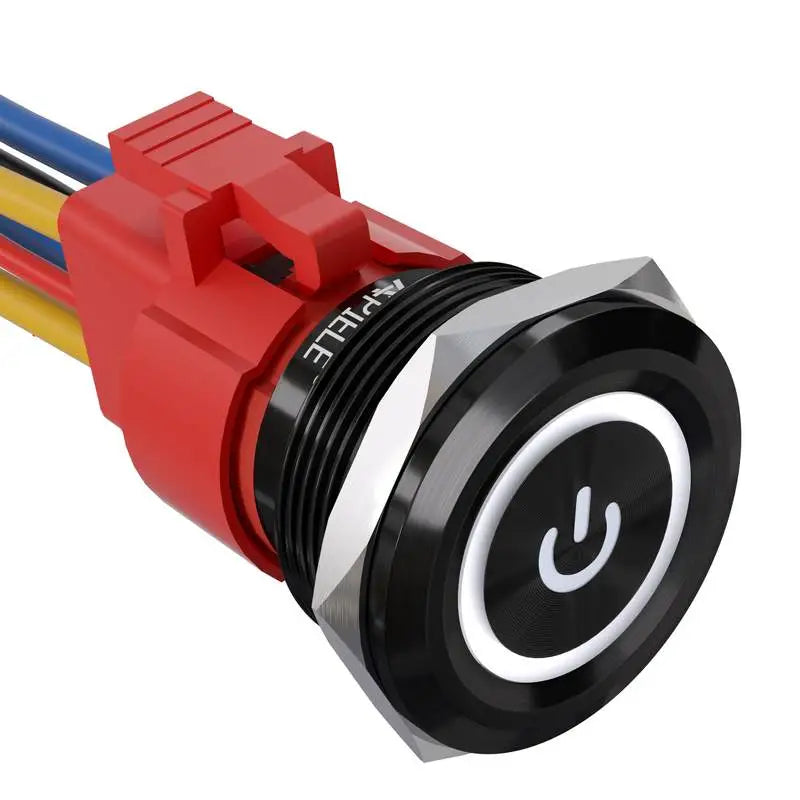

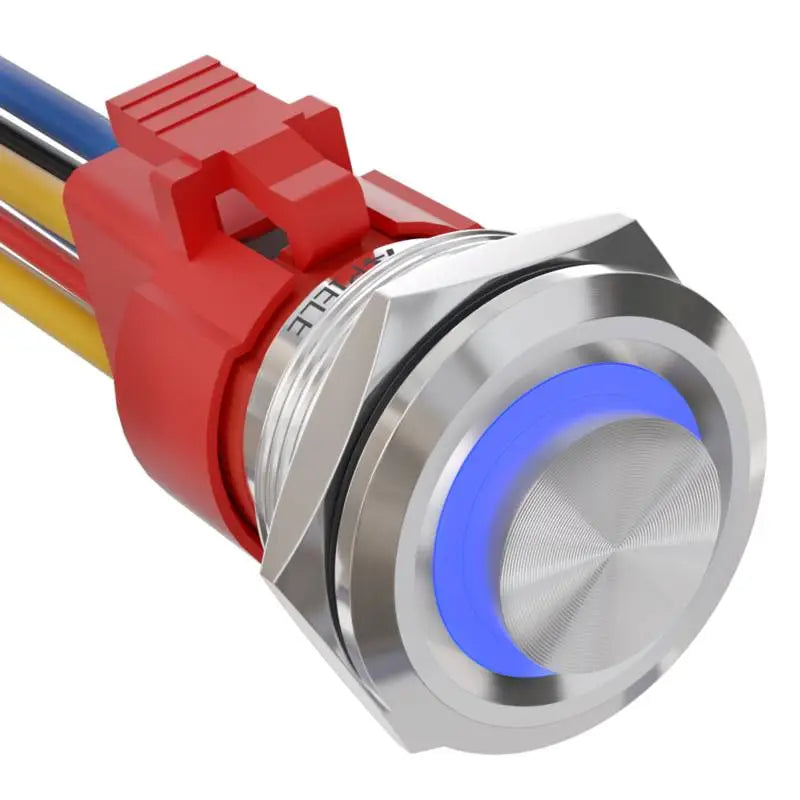

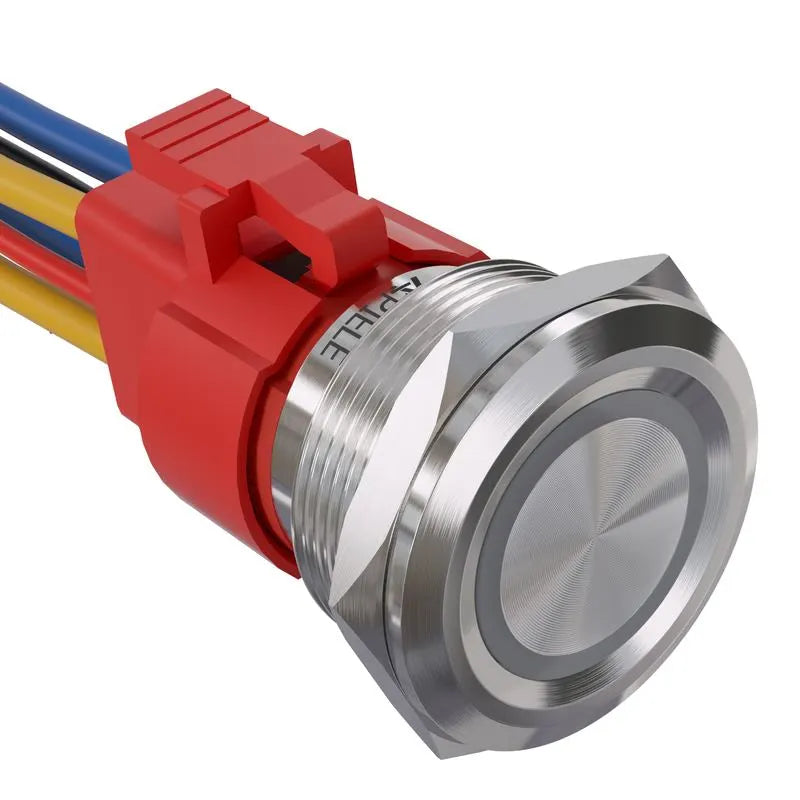

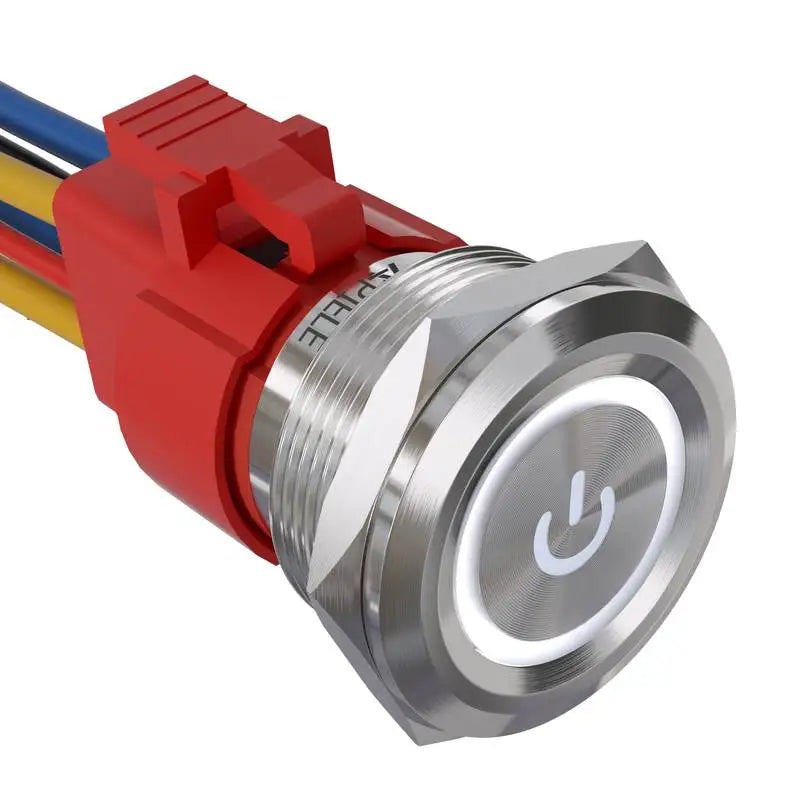

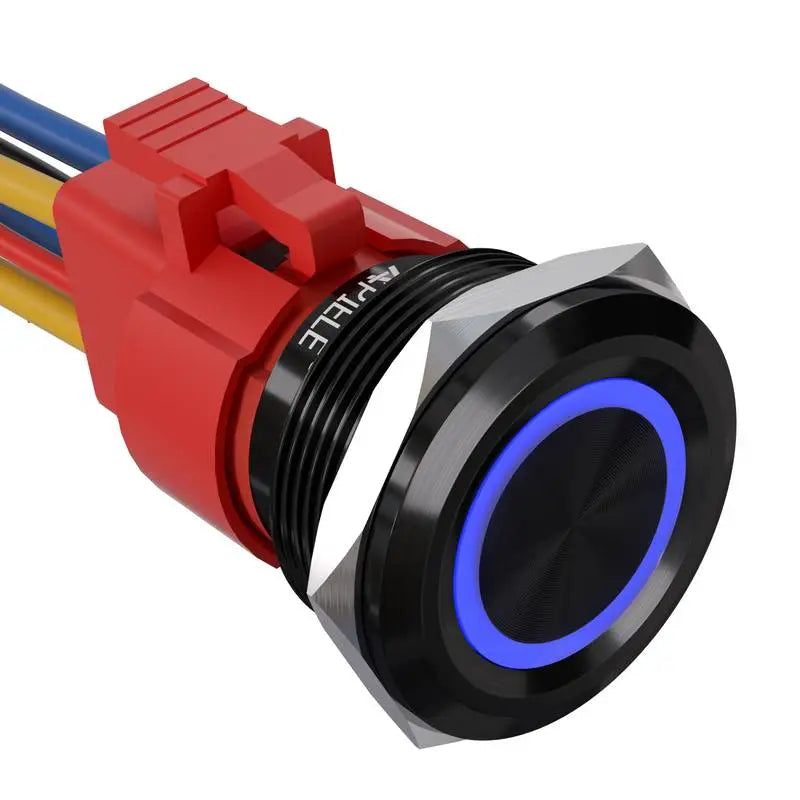

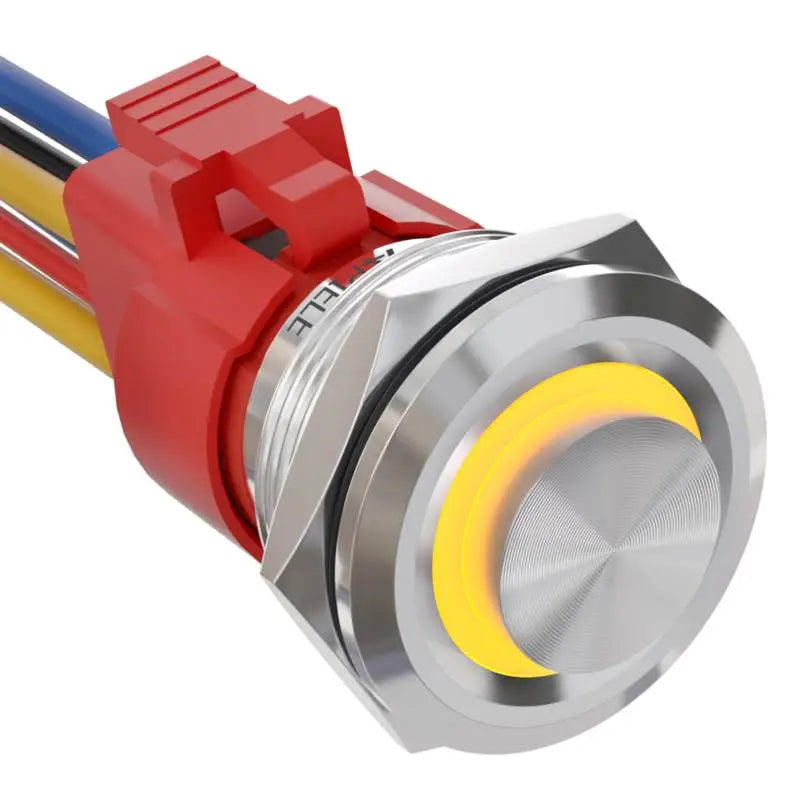

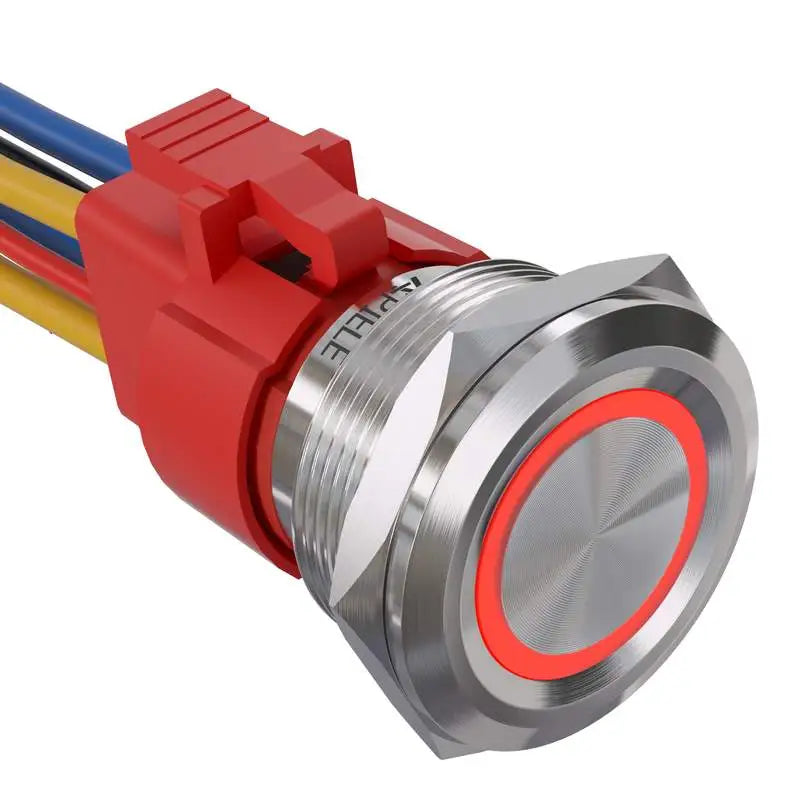

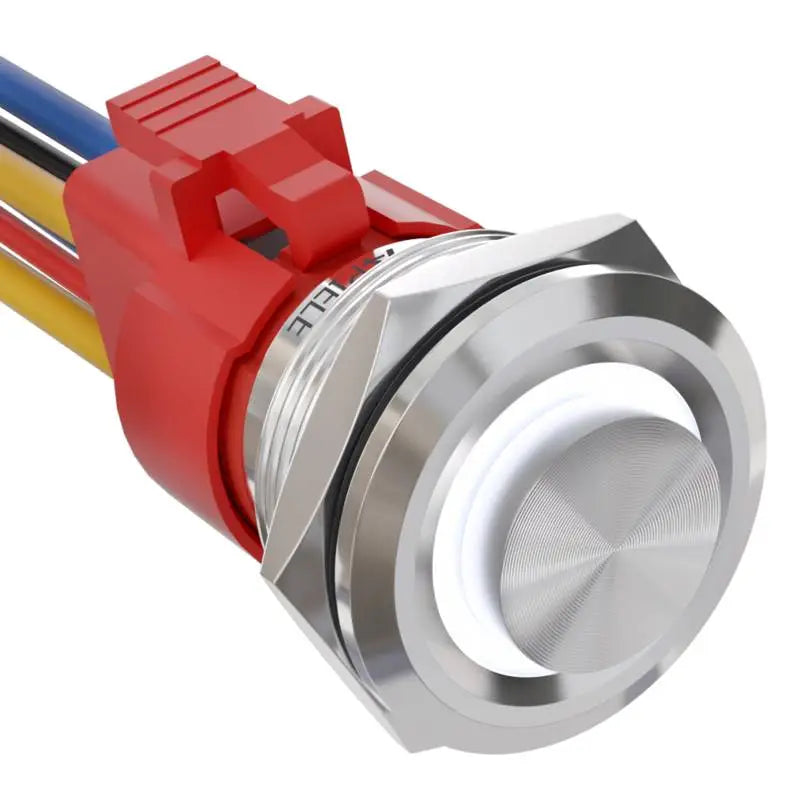

- Brand All New Design Silver 10A Stainless Steel Ring LED Push button Switch; LED voltage: 12V only, Hole size required: 1''/25mm
- 25mm Latching Push Button Switch: Push it, ON; Push it again, OFF. Contact Configuration: 1NO1NC

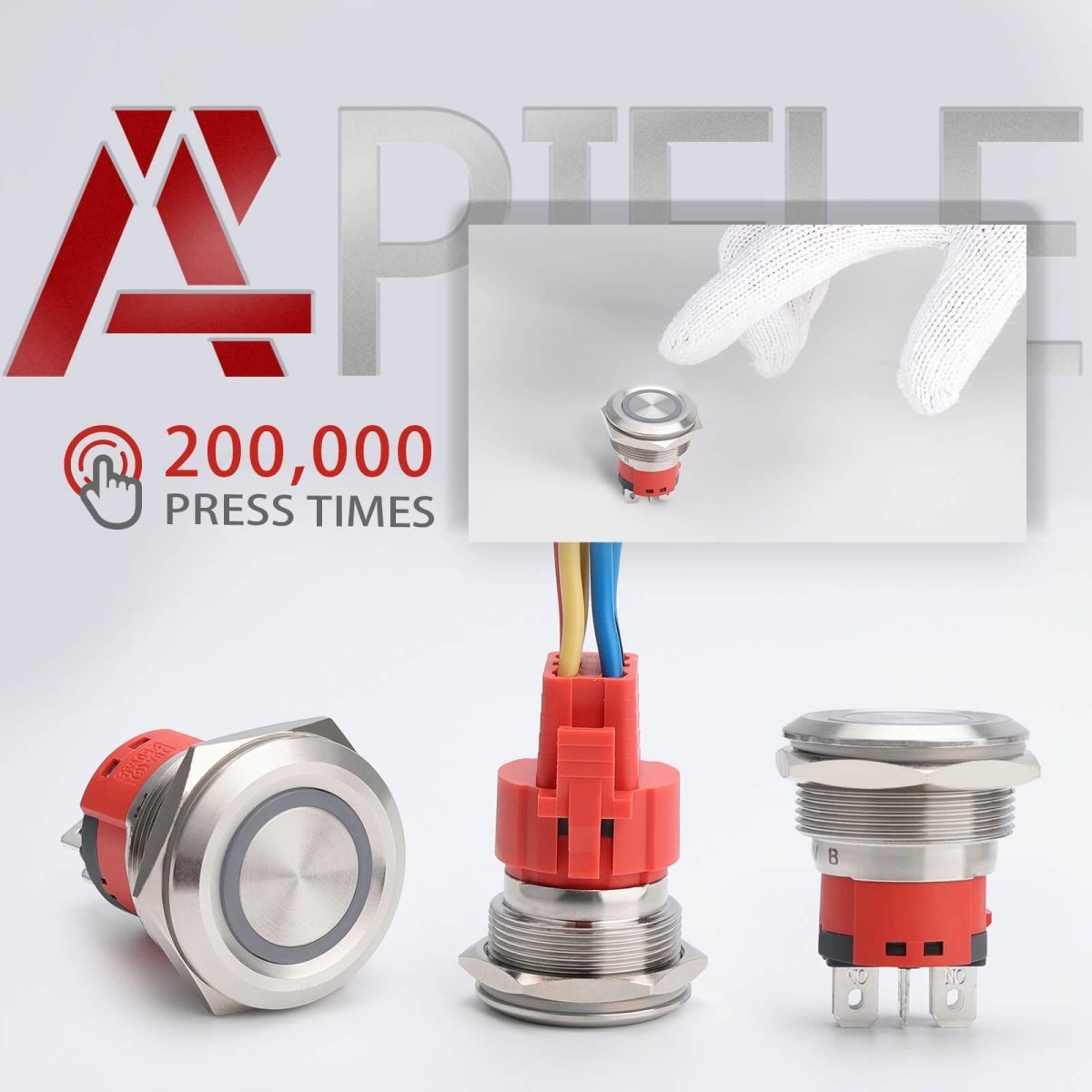

- 4.8 mm wide X 0.8 mm thickness Terminal Pin for High Current Use; Longer work life: Electrical life: 500,000 times. Mechanical Life: 2,000,000 times.
- High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
- Operation Temperature: -20 ℃ ~ +55℃
- Mechanical life: 2,000,000 cycles
- Electrical life: 500,000 cycles

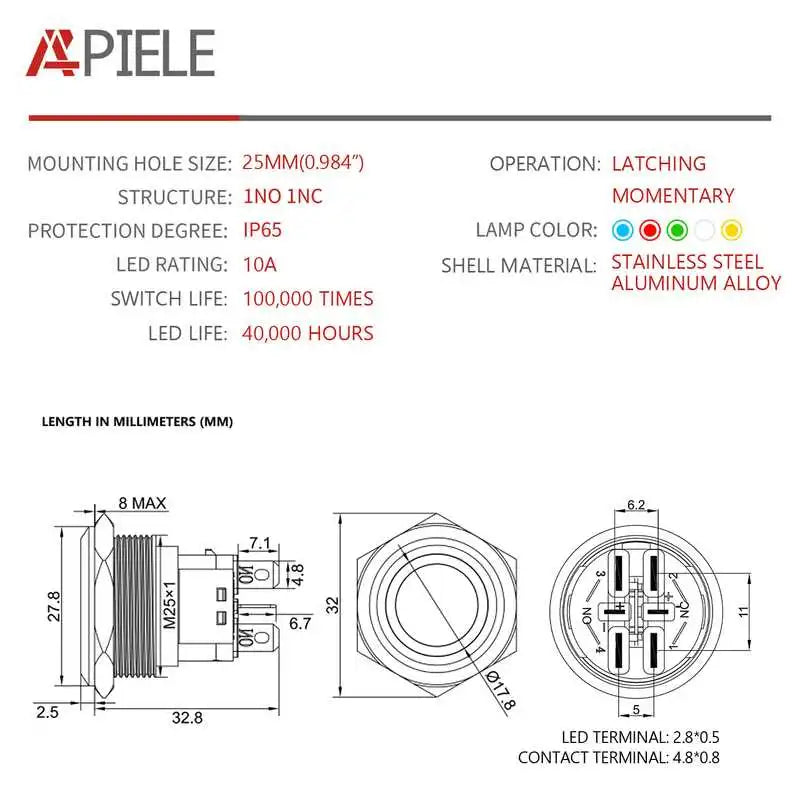

- Panel thickness: 1 - 10mm
- Protection level: IP65, IK10
- Mounting Cut Hole: 25mm
- Operation Type: Latching
- Switch Contact: 1NO 1NC
- LED Rating: 10 MA
- LED Pattern: Ring Indicator
- LED Life: 100,000 hours
- Contact Material: Silver alloy
- Button Material: Stainless Steel
- The switch come with a rubber O-ring whichmakes it splash resistant but it can NOT be submerged underwater.

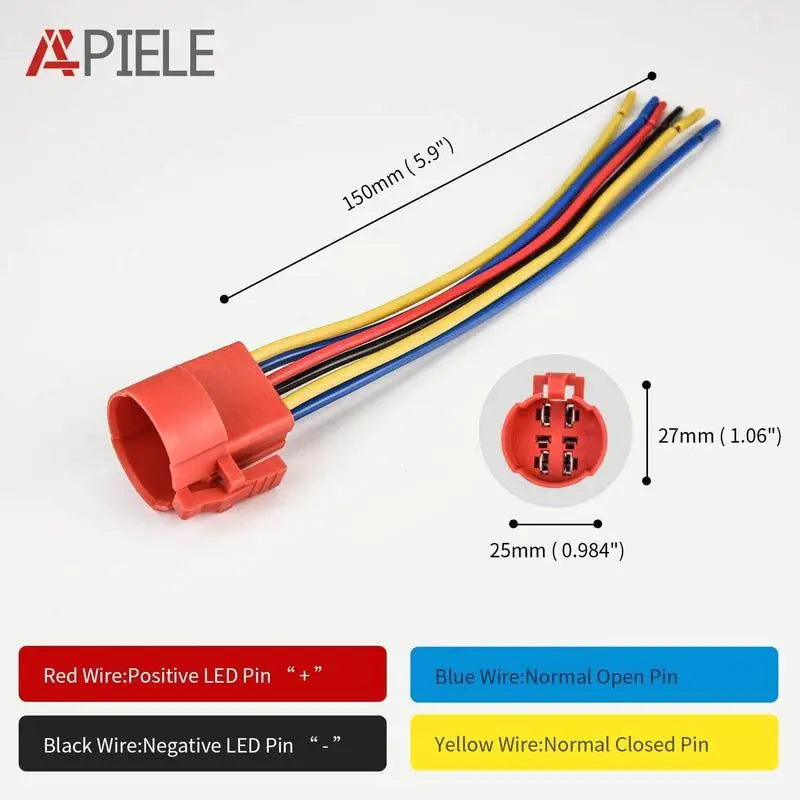

Packing Include: 1 x All New Design 25mm push button switch,1 x pigtail socket
SHIPPING How long will my order take?
Processing time:Order Verification,quality check and packaging.All orders are sent to the manufacturers for dispatch within 24 hours after the order is placed.
The manufacturer and courier company process the orders,which takes an additional 1-2 days.
Shipping time:This refers to the time it takes for items to be shipped from our warehouse to the destination.US orders which usually take between 7 and 10 business days to arrive at their destination, In special cases it will take longer. Besides,DHL,FeDex etc are also available.
FREIGHT How much does the shipping cost?
Worldwide Free Shipping (Ordinary Delivery)
Hope all customers will not hesitate due to shipping costs and will not be disappointed by shipping time !
Details are as belowed:
---We offer free shipping to worldwide about standard mode of shipping
---Fast Express charges $29.9 when your order is under $500
---Fast Express is free worldwide when your order is over $500PAYMENT What payment terms you can accepet?
We can accept Paypal and Credit card.(Paypal/Visa/Master/Maestro/Diners Club/Discover)
My payment was declined,why?
If your credit is declined there may be a few reasons:the card no funds available,you entered the wrong CSV security code,the card is expired,you entered the wrong billing information,the card does not allow internet purchases(card not present purchases)etc.In any event by calling your issuing bank call tell you why the card is declining.
Or send an email to contact us -- email@example.com
Solutions:Try a different credit card or try using PayPal as your checkout method.
RETURNS How do i returm a product?
Once you have alerted us you wish to make a return through an email contact.We will start the simple return process with you via email.
WARRANTY warranty and return policy information
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can contact us at firstname.lastname@example.org. If your return is accepted, we’ll send you a return shipping label, as well as instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
You can always contact us for any return question at email@example.com
This All Metal Switch Functions Manually As A Replacement Of Auto Refit, Boat Refit, Instruments Apparatus, Enter Guard, Household Appliance. It Provides Solid And Crisp Push Feeling And Comfortable Led Light. Ip65 Waterproof Make It Can Be Used In Humid Environment.
The metal shell and push part is not easy to damage.

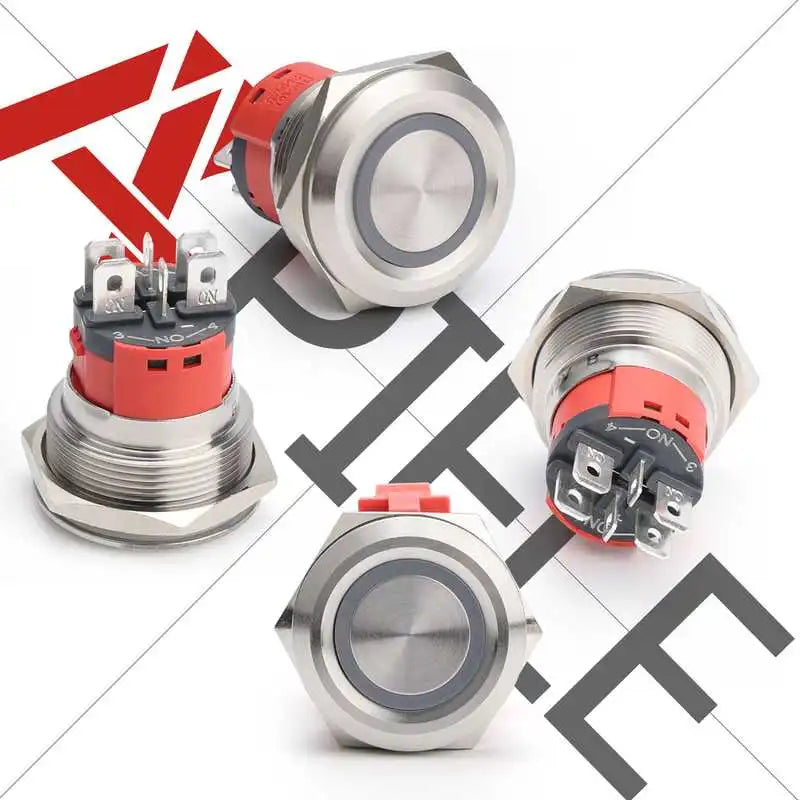

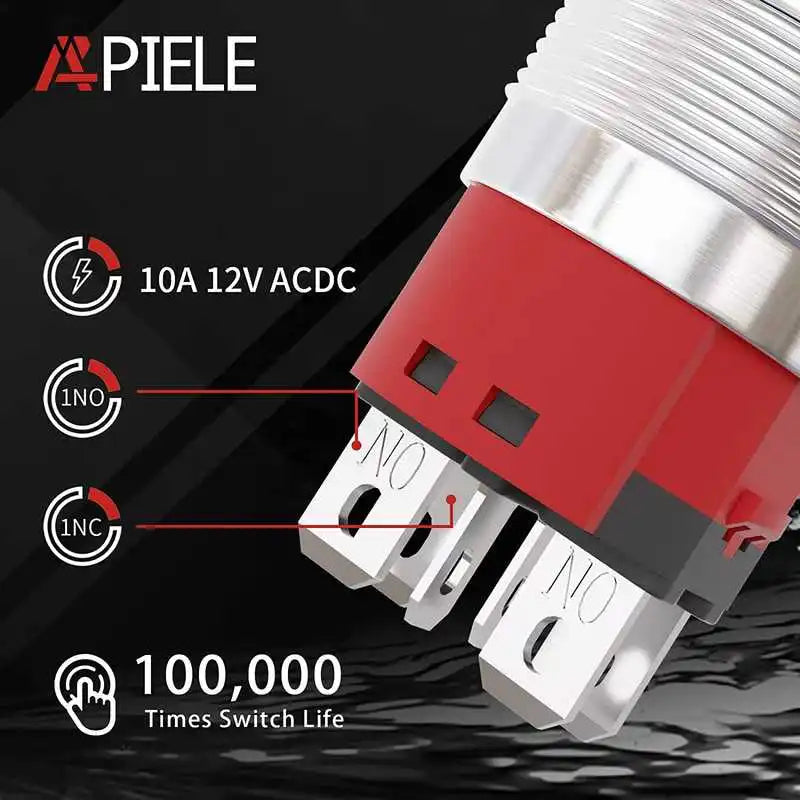

4.8 mm wide X 0.8 mm thickness Terminal Pin for High Current Use

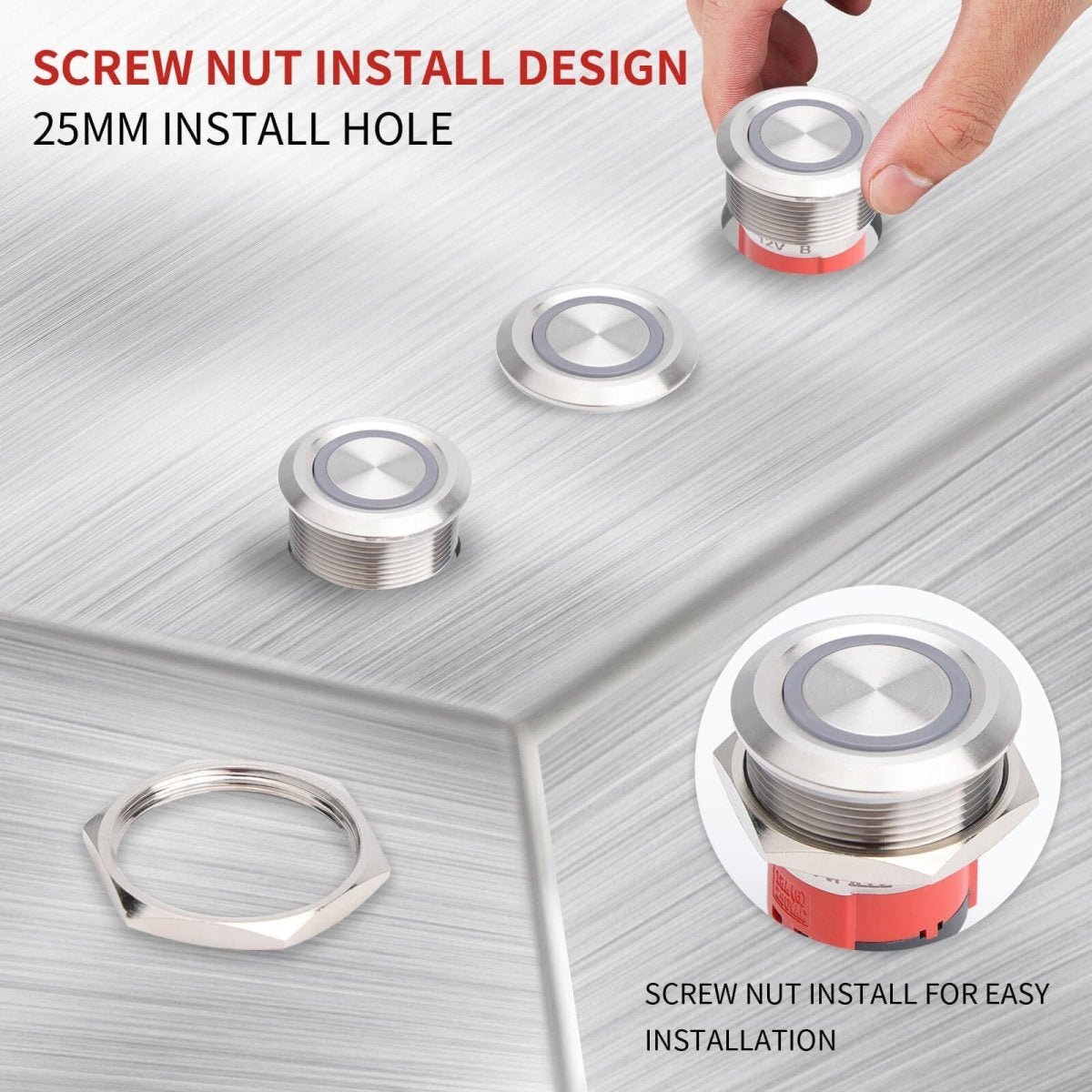

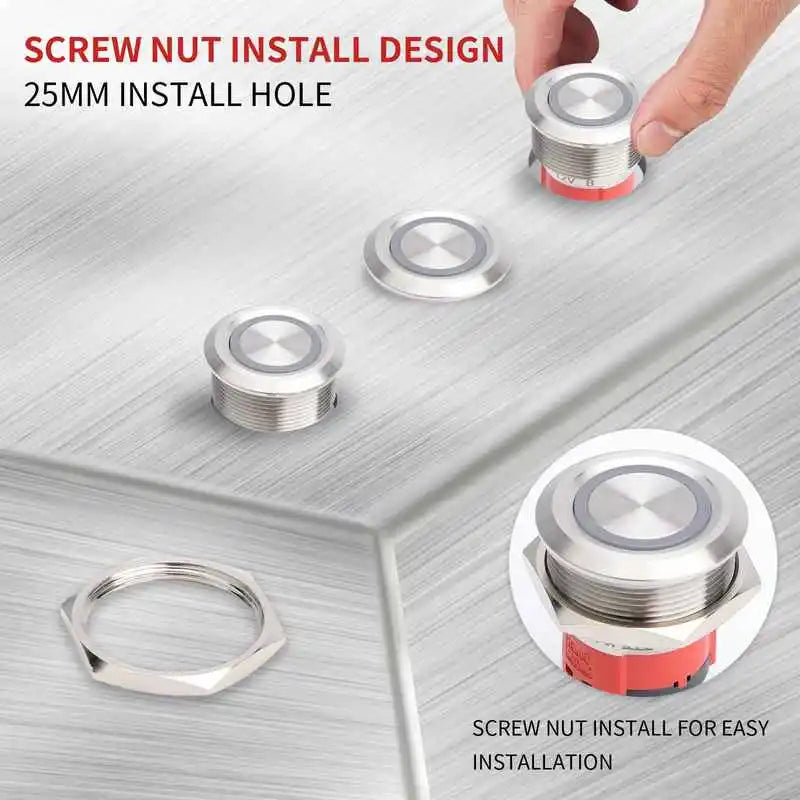

Screw on Design
25mm (1") Mounting Hole Size. Put the switch into the Mounting Hole, then screw on.

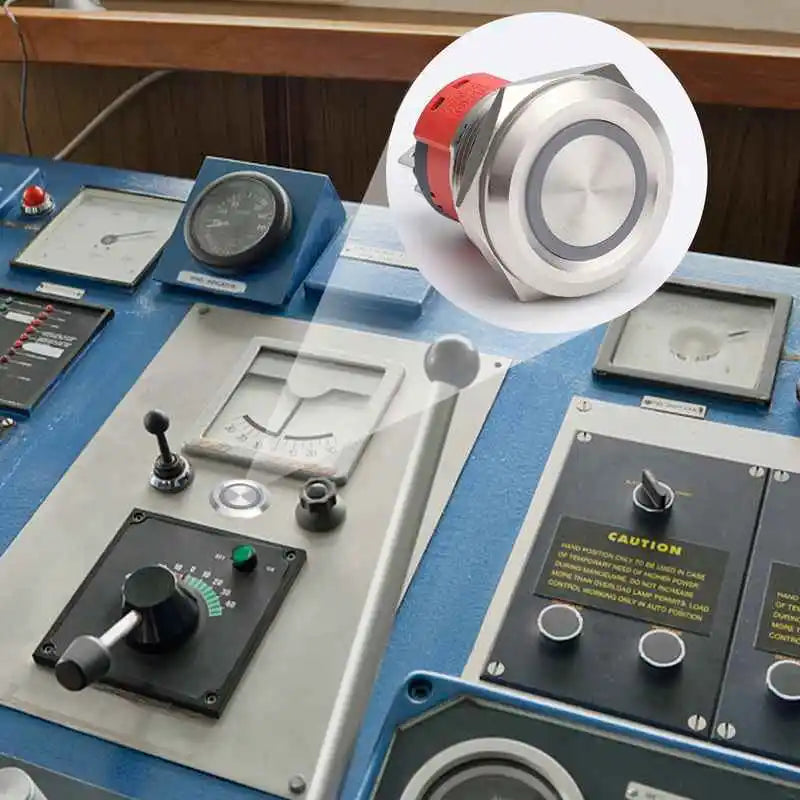

Use this switch to replace the light switch, horn switch or other control switches in the cars/ boats/ trucks. Bright and comfortable Led and metal appearance make the switch very cool.
Door Bell/ Entrance Guard
It can use as a door bell, entrance guard push button switch in the outdoors. As it is IP65, it can work relatively harsh environment.
Household Applicances Control
It is also a good choice to use it as a replacement switch of household Appliances. Such as table lamp switch, PC switch, Audio switch.

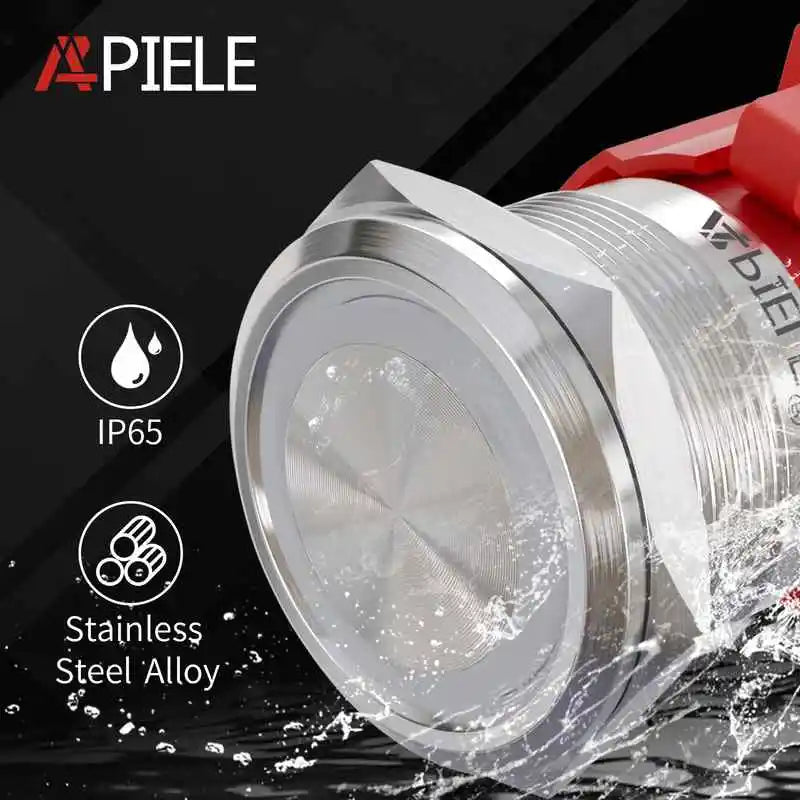

As it is full metal appearance and with a rubber ring, the switch achieves IP65 waterproof degree. It can used in wet environment, such as boat control panel, kitchen, outdoors etc. Note that this switch can be used under water.
Long Work Life
The metal shell and push part is not easy to damage.
The Mechanical work Life is 500,000 times
The switch use Silver Alloy contact to make the Electrical Work Life more than 100,000 times.
Pure Led Lights
APIELE Switch use pole-less lamp beads, bright and dazzling brightness, long service life. The work life of the led light is more than 40,000 hours.
