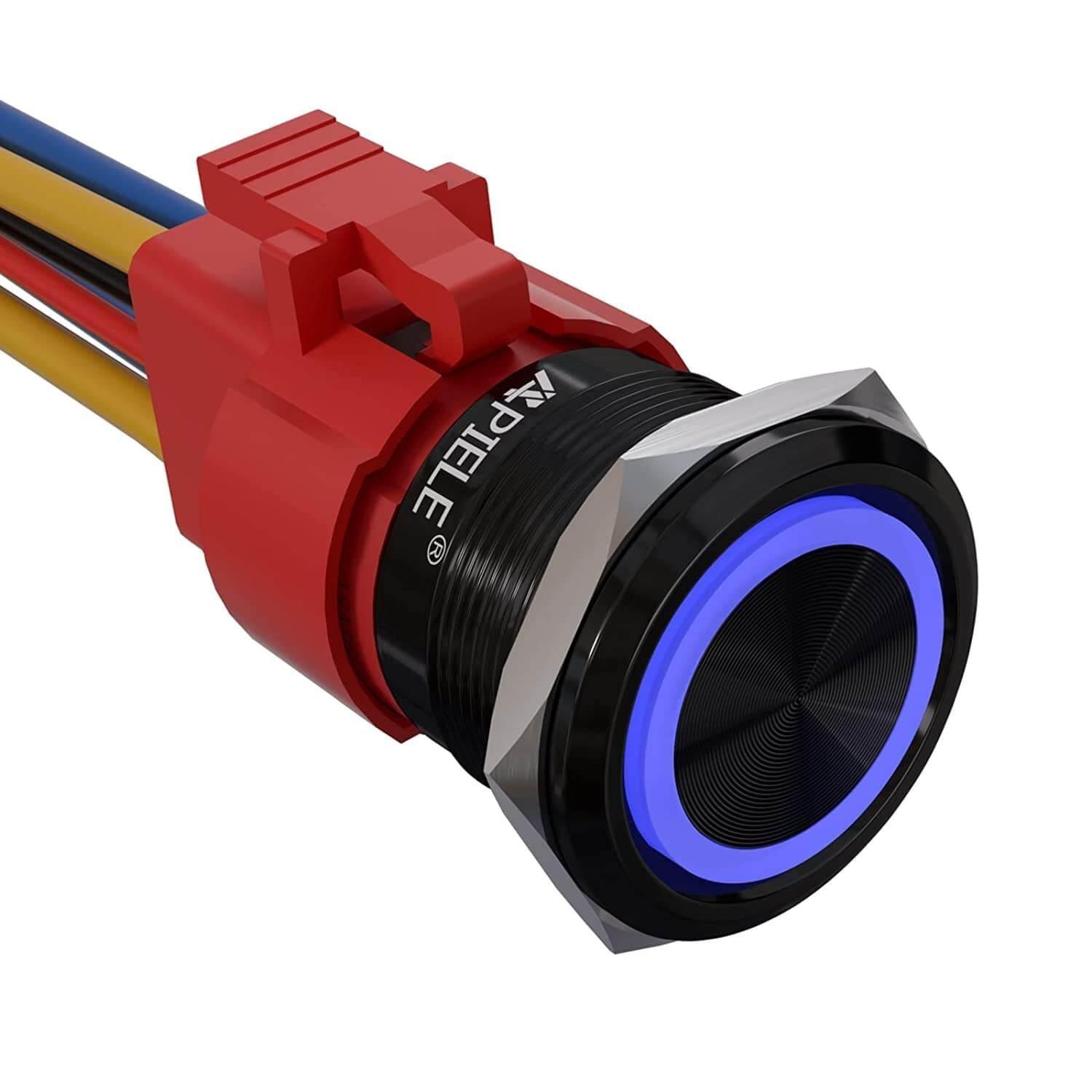

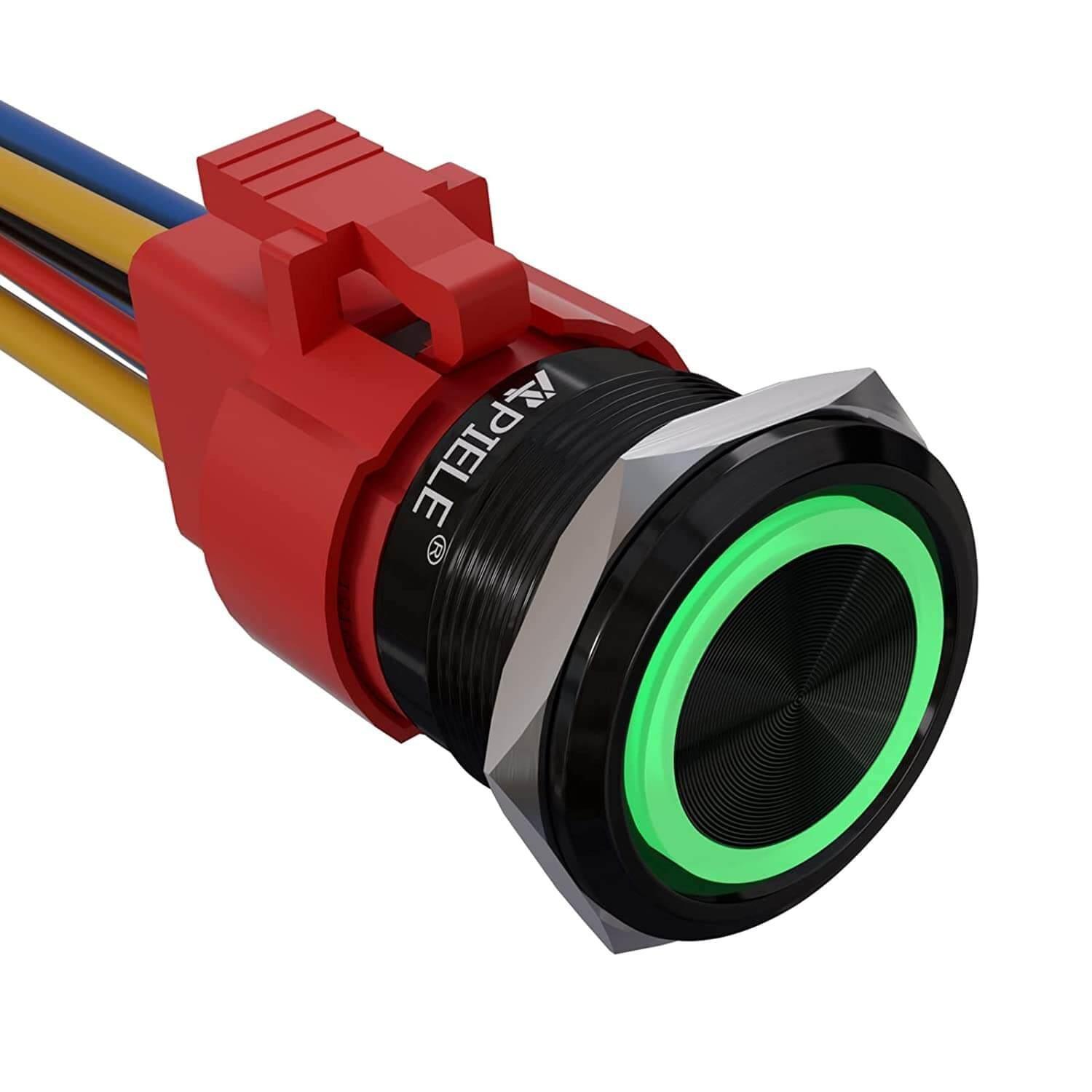

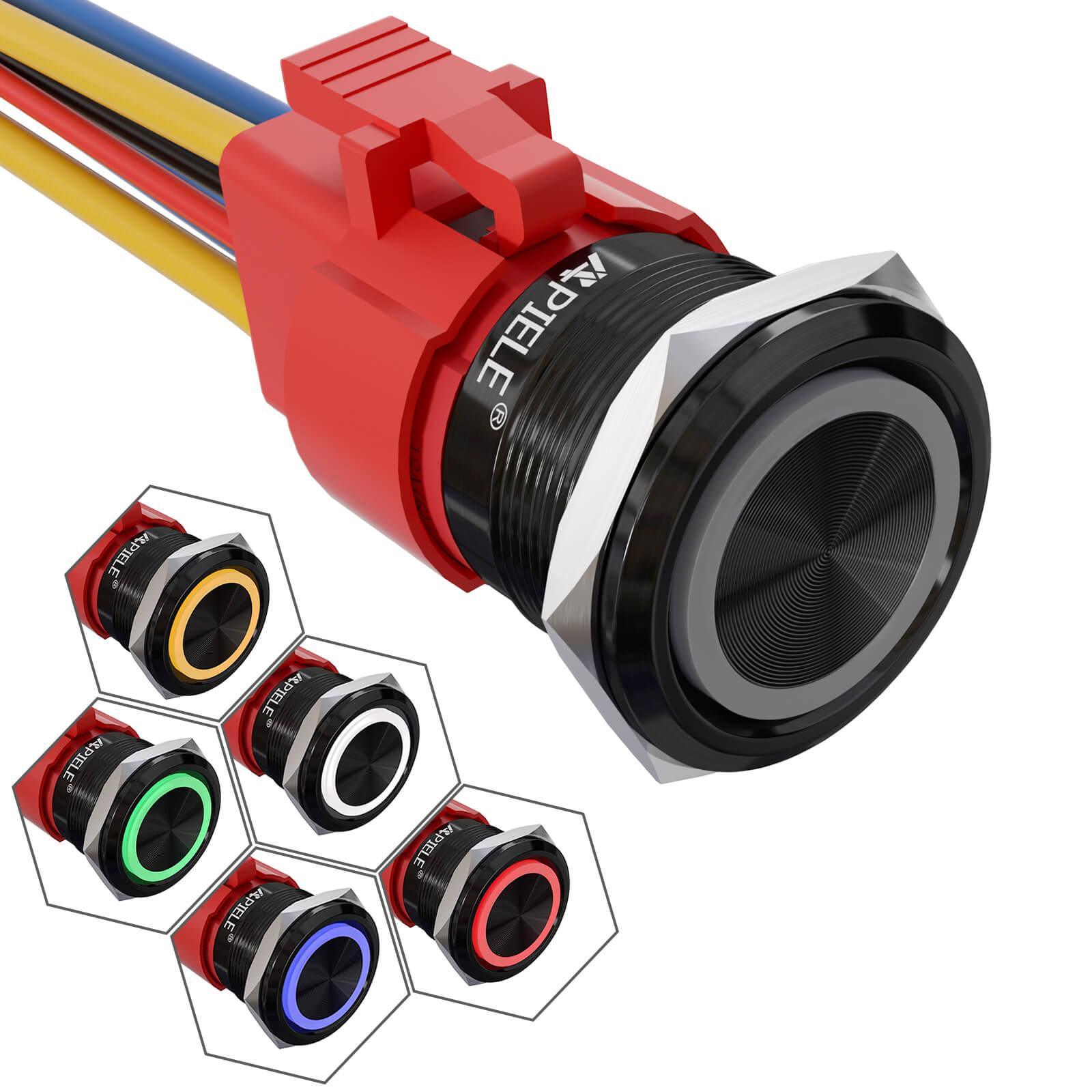

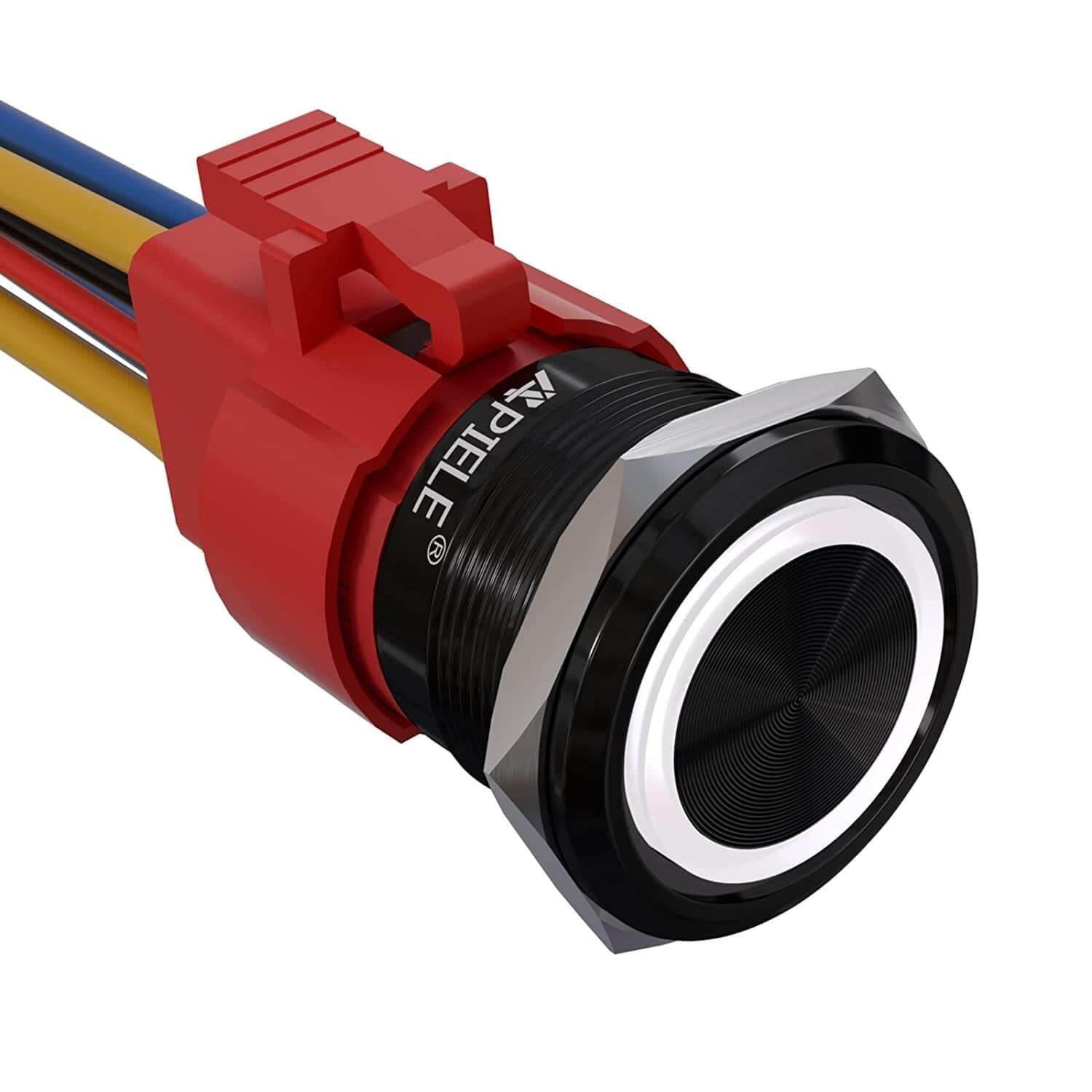

10 Amp 22mm Latching Push Button Switch Angel Eye LED Waterproof Aluminum Alloy Round Self-Locking 7/8'' 1NO 1NC (10 Amp Blue/Red/Green/Yellow/White)
SKU:
API22AF11EZA6BT
Availability:
In Stock
- $15.99
-
- $15.99
- Unit price
- per
Subtotal:
$15.99
10 customers are viewing this product
Free Shipping
Worldwide Free Shipping (Ordinary Delivery)
Orders over 500$ Fast Express Free
Description
x
- GET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH.

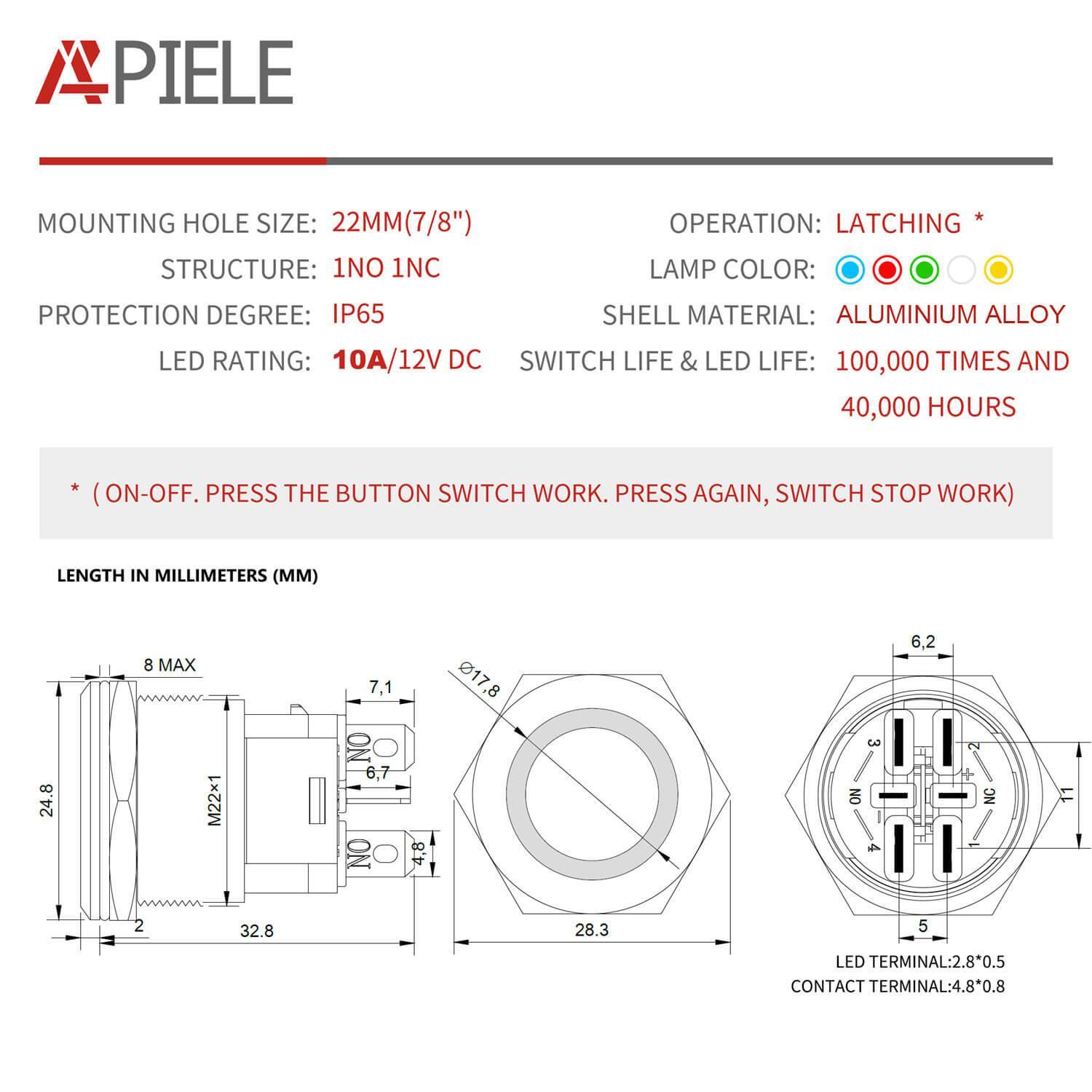

- Brand All New Design Black 10A Stainless Steel Ring LED Pushbutton Switch; Hole size required: 7/8''/22mm

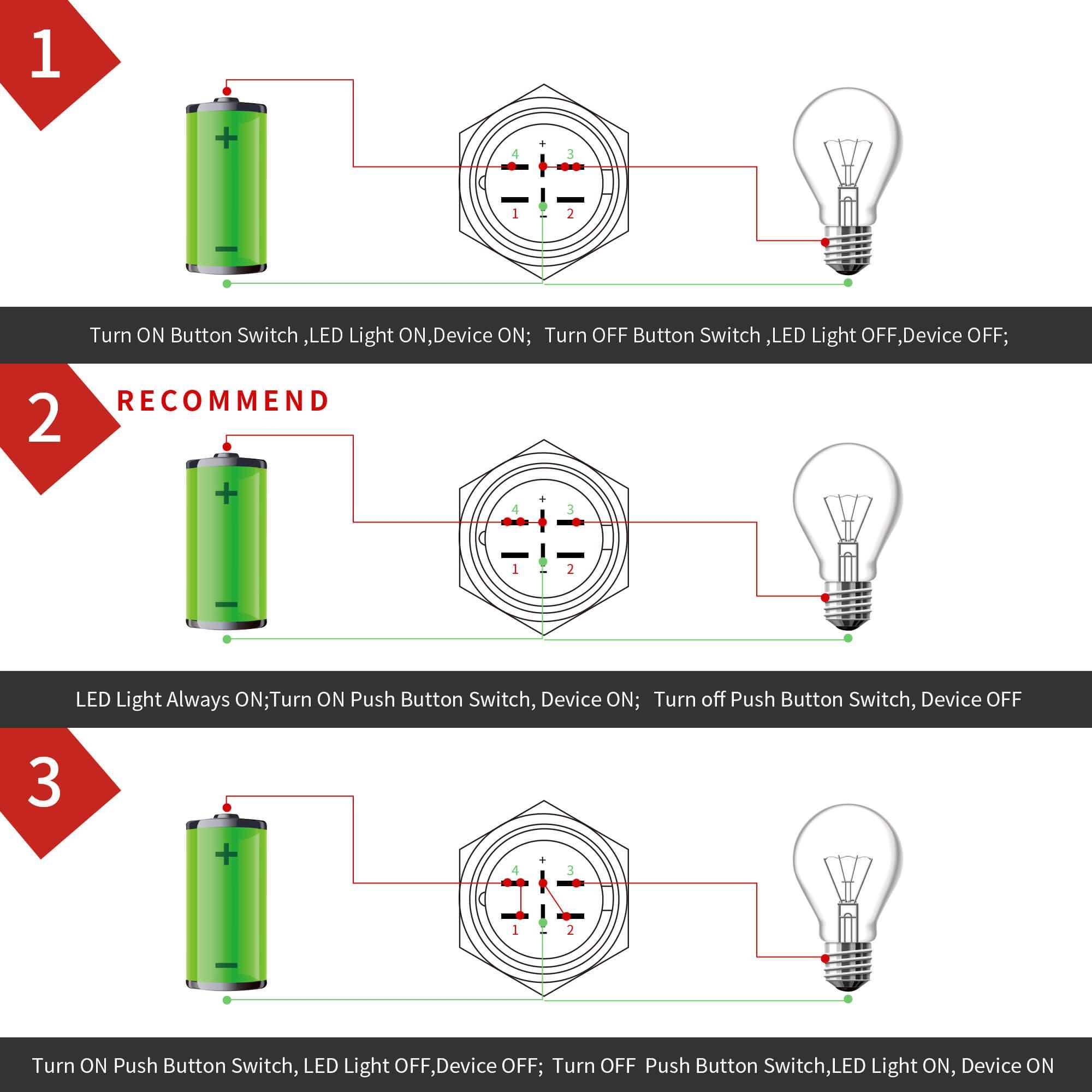

- 22mm Latching Push Button Switch: Push it, ON; Push it again, OFF. Contact Configuration: 1NO1NC
- 4.8 mm wide X 0.8 mm thickness Terminal Pin for High Current Use; Longer work life: Electrical life: 500,000 times. Mechanical Life: 2,000,000 times.
- High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
- Operation Temperature: -20 ℃ ~ +55℃
- Mechanical life: 2,000,000 cycles ( Old type is 1,000,000 cycles)
- Electrical life: 500,000 cycles ( Old type is 100,000 cycles)
- Panel thickness: 1 - 10mm
- Protection level: IP65, IK10

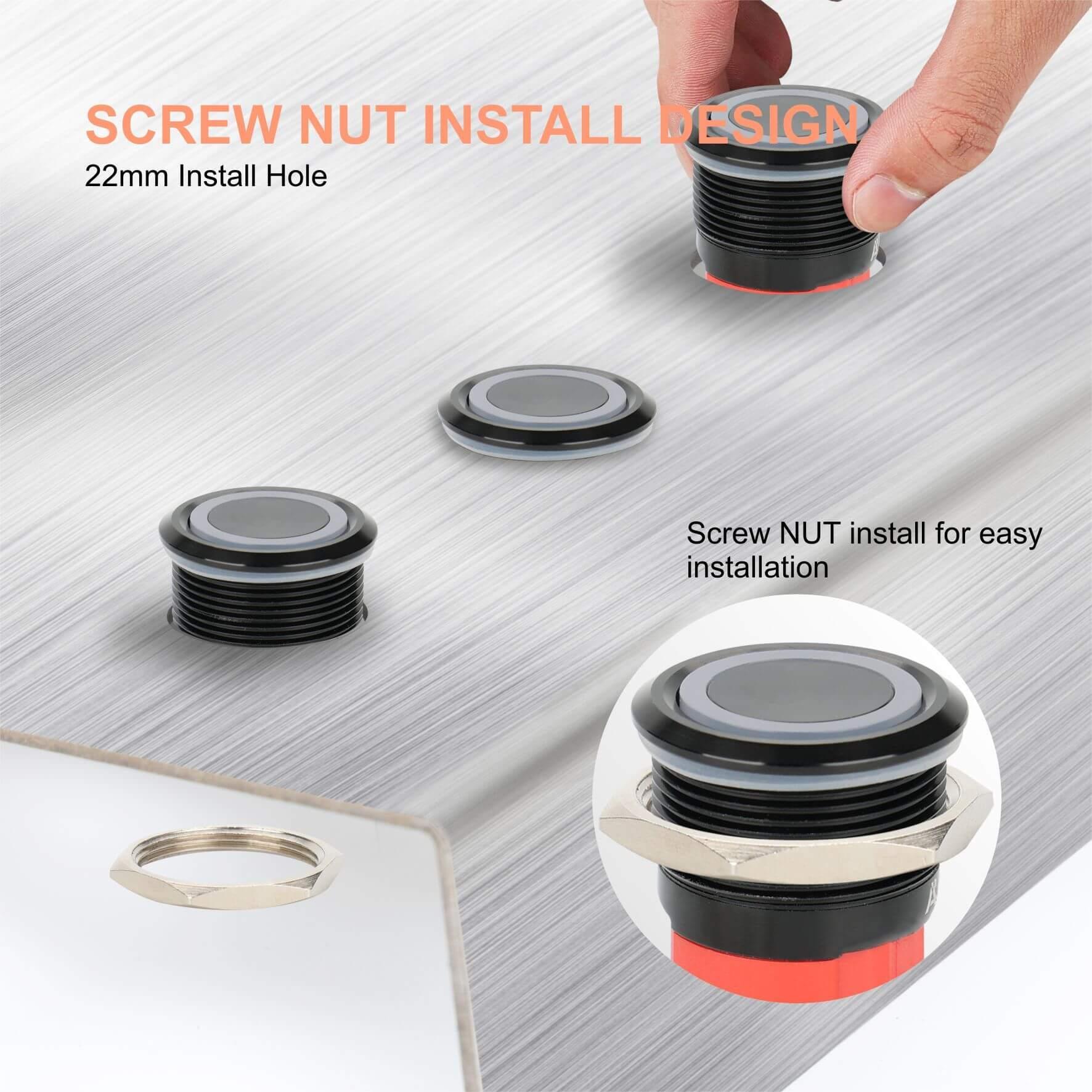

- Mounting Cut Hole: 22mm
- Operation Type: Latching
- Switch Contact: 1NO 1NC
- LED Pattern: Ring Indicator
- LED Life: 100,000 hours
- Contact Material: Silver alloy
- Button Material: Stainless Steel
Note:
- The switch come with a rubber O-ring whichmakes it splash resistant but it can NOT be submerged underwater.
